MSI X570-A PRO AMD Motherboard-Motherboard - Bykski
SKU: X570-A PRO
25
R 3,999.00

MSI X570-A PRO AMD Motherboard

Overview:



ATX Form Factor
- AMD X570 Chipset
Socket AM4
- 4x DDR4 DIMM Slots, Supports Up to 128GB
2x PCIe 4.0/ 3.0 x16 Slot, 3x PCIe 3.0 x1 Slots
6x SATA 6Gb/s Ports, 2x M.2 Slots
- 1x USB 3.2 Gen 2 Type-A, 1x USB 3.2 Gen 2 Type-C
- 4x USB 3.2 Gen 1 Type-A, 2x USB 2.0 Type-A
- 1x HDMI Port
- Realtek ALC1220 High-Definition Codec
- Realtek 8111H Gigabit LAN
3 Year Warranty



Inspired from architectural design, with Lightning Gen 4 PCIe and M.2 solution, Frozr Heatsink, Core Boost, DDR4 Boost, Audio Boost 4, USB 3.2 Gen2 connector


  • Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for AM4 socket
  • Supports 4 DIMMs, Dual Channel Memory DDR4, up to 4400+(OC) MHz
  • Lightning Gen 4 Solution: The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed and performance.
  • Frozr Heatsink Design : Designed with the patented fan and double ball bearings to provide best performance for enthusiast gamers and prosumers.
  • Set Core Power Free: Core Boost, 8+4 pin CPU power connectors, DDR4 Boost
  • Audio Boost 4: Reward your ears with studio grade sound quality.
  • Multi-GPU: With Steel armor PCI-E slots. Supports 2-Way AMD Crossfire™
  • AMD Turbo USB 3.2 Gen2: Powered by AMD USB 3.2 Gen2 controller, ensures an uninterrupted connection with more stability and fastest USB speeds



EXCLUSIVE FEATURE OF PERFORMANCE:

Core Boost Technology:

Combining 8+4 pin power connectors and premium layout design, that is ready for unleashing the maximum performance.

IR Digital PWM:

Highest quality component IR digital power makes sure your system runs smoothly under the most extreme conditions

Server-Grade PCB:

Server-Grade PCB provides higher PCIe 4.0 performance and long-lasting system stability without any compromise.

PCIe Steel Armor

Protecting VGA cards against bending and EMI for better performance, stability and strength

HIGH-SPEED TRANSMISSION:



AMD Turbo USB

Featuring the TURBO USB 3.2 GEN2, with reversible Type-C Connector.


DDR4 BOOST

The Fully isolated DDR circuit to deliver pure data signals for the best gaming overclocking performance.


Lightning Gen 4 Solution

The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.

NEXT-GEN THERMAL SOLUTION

Frozr Heatsink Design

Designed with the patented fan and double ball bearing to provide the best performance for enthusiast gamers and prosumers.



Full Fan Control

6x fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence



Zero Frozr Technology

AI Tuning system that auto-adjust fan speed by chipset temperature, even eliminates fan noise by stopping the fans in low-load situations



STUNNING MEMORY PERFORMANCE


The optimized circuit layout design separates the memory transfer block to ensure the stability of the signal, allowing you to experience the game with peace of mind.



EASILY OVERCLOCK WITH A-XMP PROFILES


Select the default A-XMP profile in CLICK BIOS 5 and automatically overclock compatible DDR memory. These settings have been tested and certified by MSI OC Laboratories to ensure speed and stability.



APPS TO GREATLY IMPROVE EFFICIENCY


With years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. Use these tools to get the most out of your motherboard and achieve victory when gaming. Moreover, we made sure our BIOS contains all the latest options and is easy to use for everyone. The extensive features let you fine-tune your system to deliver reliable maximum performance.

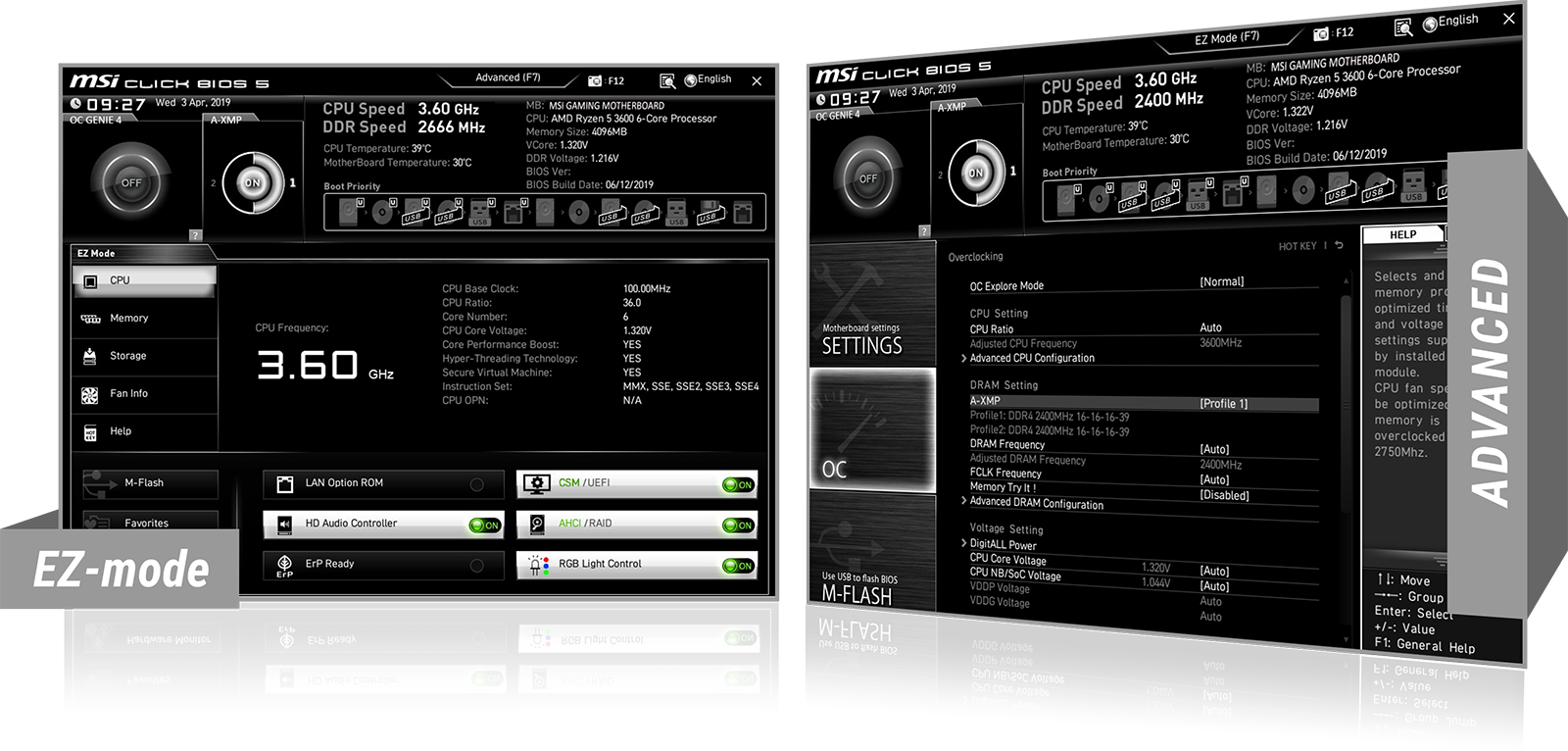

CLICK BIOS 5


Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records!
